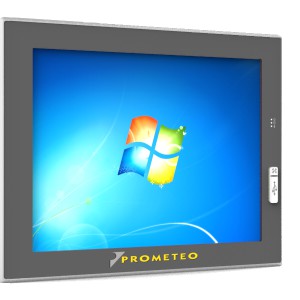

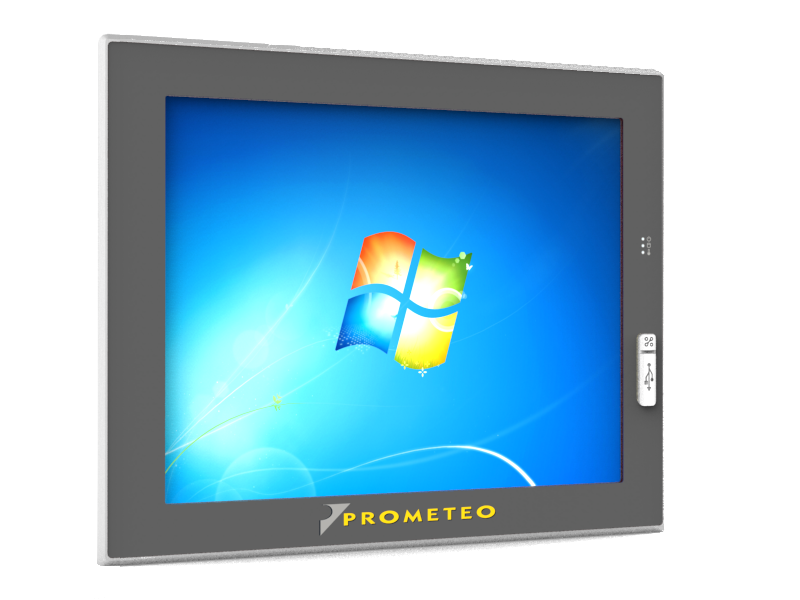

Panel PC PPE 117 - B3 PMT

17" Industrial Computer

MAINBOARD
• CPU: Intel Celeron BayTrail N2930 4x1.83GHz
• VIDEO CARD: Intel HD Graphic
• WATCHDOG TIMER: Programmable by S/W - 1sec.~255min

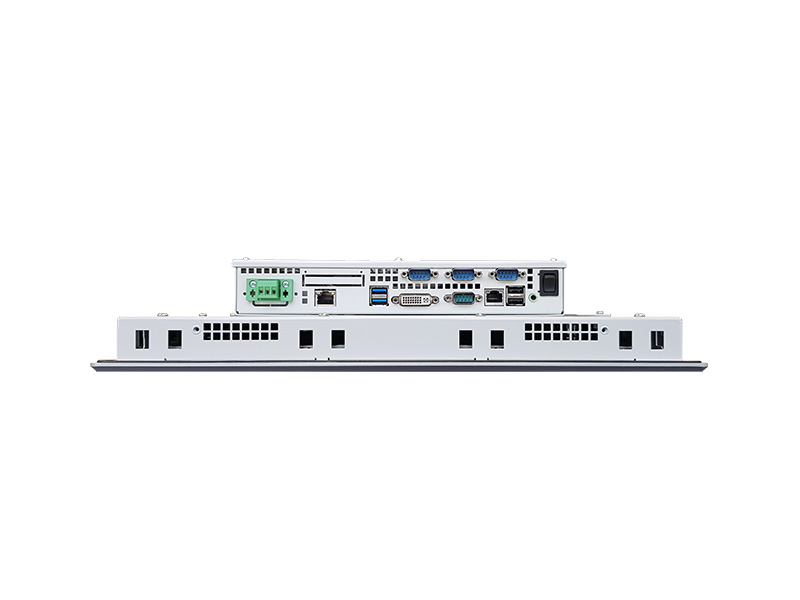

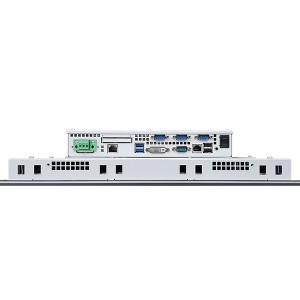

INTERFACES
• AUDIO: Line-out
• LAN: 1 x LAN Gigabit Intel 82574
• LAN: 1 x LAN Gigabit Realtek
• SERIAL PORTS: 3 x RS232 port + 1 x RS232/422/485
• USB: 1 x USB 3.0 + 3 x USB 2.0
• VIDEO: 1 x DVI-I

DISPLAY
• ASPECT RATIO: 4:3
• BACKLIGHT: Led
• BRIGHT AND CONTRAST: 350 cd/mq 1000:1
• COLORS: 16 M
• RESOLUTION: SXGA (1280 x 1024)
• SIZE: 17.0"
• VIEW ANGLE: 160° - 140°

MEMORY
• DIMENSION: 4 GB
• FREQUENCY: 1600 Mhz
• TYPE: So DDR3 Low Voltage

mSATA
• CAPACITY: 64 GB
• FLASH TECHNOLOGY: MLC
• INTERFACE: Mini-PCIe
• TRANSF.RATE: R: 220 MB/s - W: 80 MB/s

TOUCH SCREEN
• INTERFACE CONNECTION: USB 2.0

FRONT PANEL
• MATERIAL: Alluminium
• THICKNESS: 7 mm

INPUT
• CONNECTION TYPE: Terminal with screws
• MAX POWER: 30 W
• VOLTAGE: 9-36 VDC

MECHANICAL FEATURES
• CHASSIS MATERIAL: Painted metal RAL7035
• IP PROTECTION: IP65 on front side
• MOUNTING TYPE: Recessed. Rear mount fastening system
• WEIGHT: 7 kg
• WORKING TEMP: 0 - 50° C, non-condensed
